Transmission Electron Microscope (TEM)
JEM-2100 LaB6 Transmission Electron Microscope (TEM).
Features
- High-resolution Gatan digital camera with an instrument resolution of 0.2 nm.
- High angle annular dark field (HAADF) detector for imaging in STEM mode.
- 3D tomography holder with high-stability goniometer stage specifically tuned for high-tilt range tomographic applications.
- Oxford Instruments EDS elemental analysis with mapping and line scan capability.
- CRYO imaging at -175oC.
-

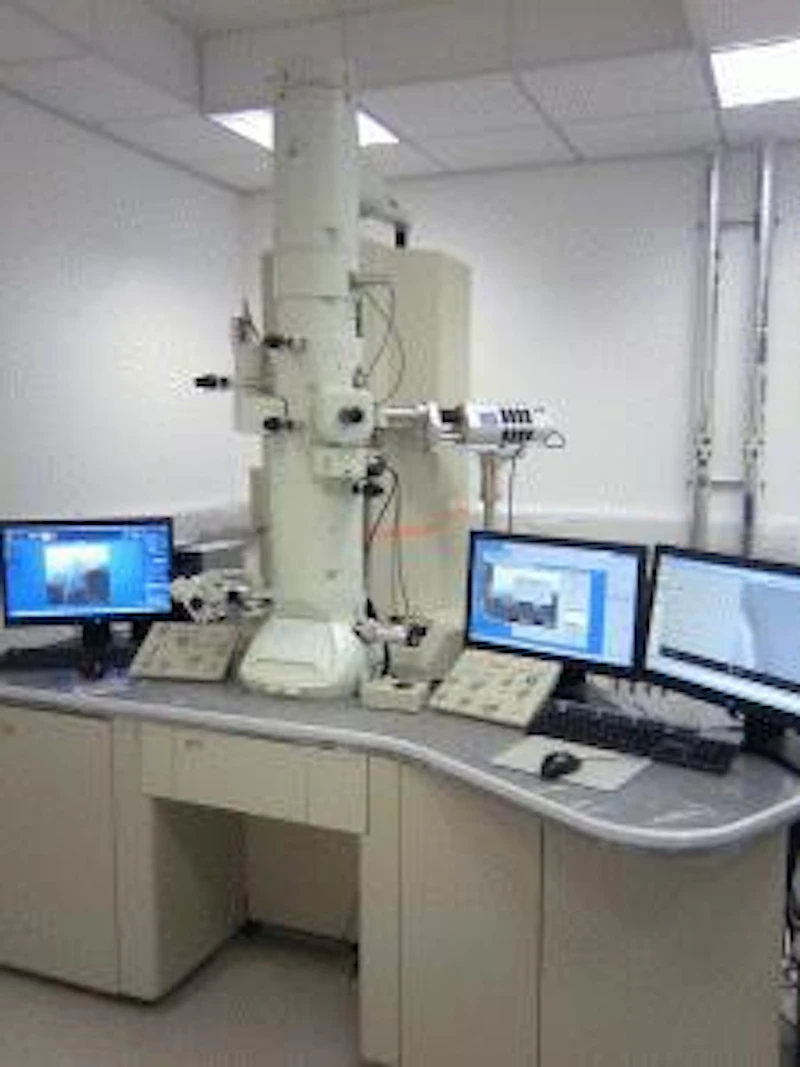

LaB6 80-200 kV
-
5 nm Au Particles in 1Wt% Au-TiO2 catalyst
-

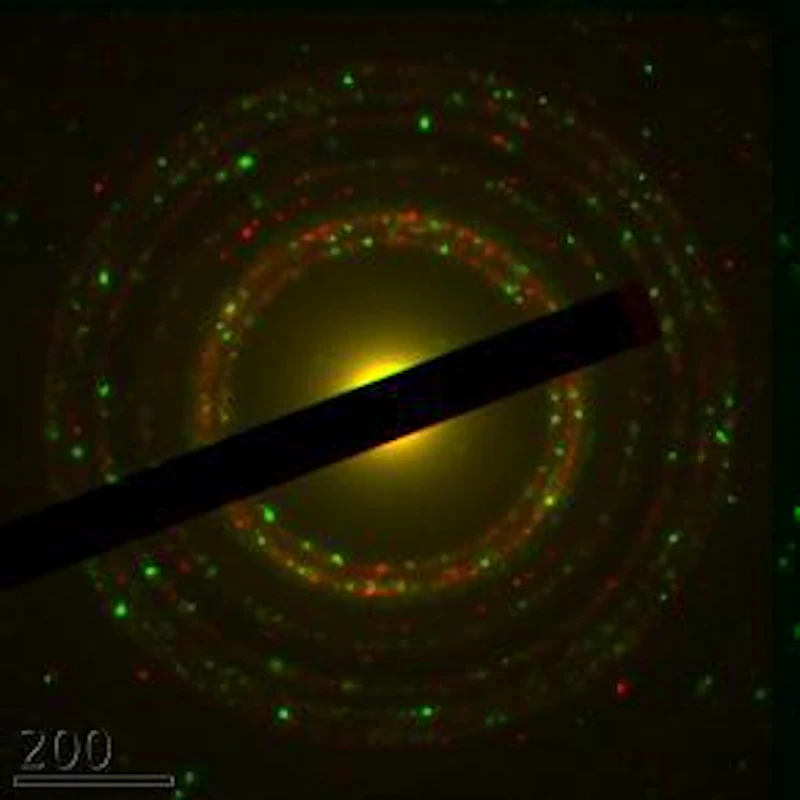

Selected Area Electron Diffraction (SAED) for phase analysis
-
Selected Area Electron Diffraction (SAED) for phase analysis
-

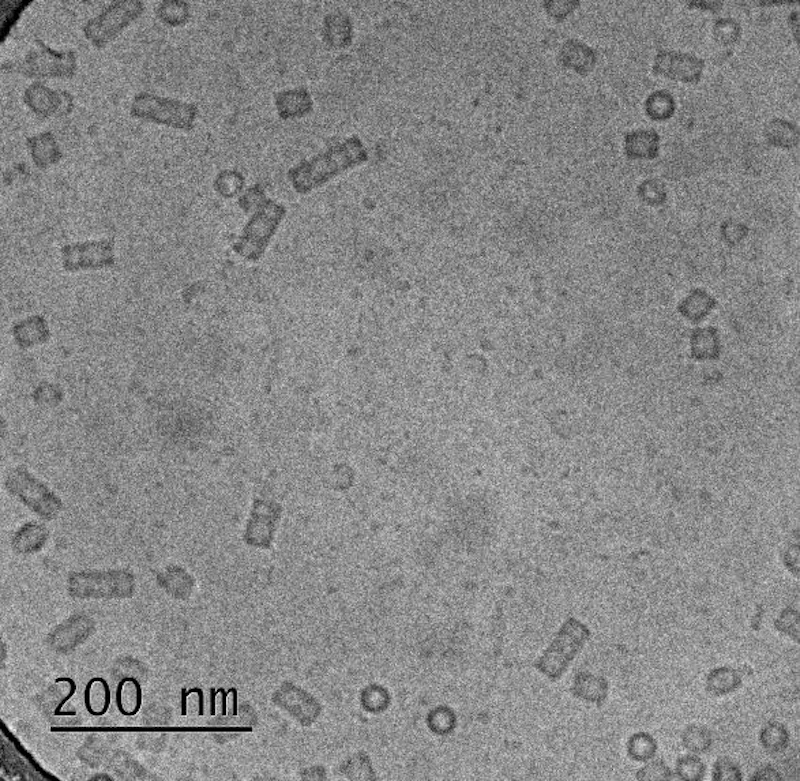

Cryo-EM of Haemocyanin protein for SPA and reconstruction
-

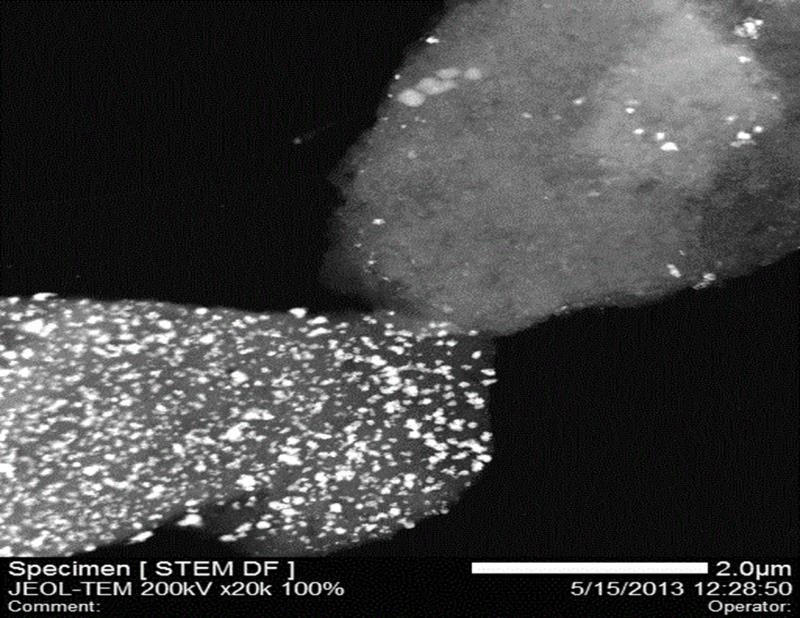

STEM
-

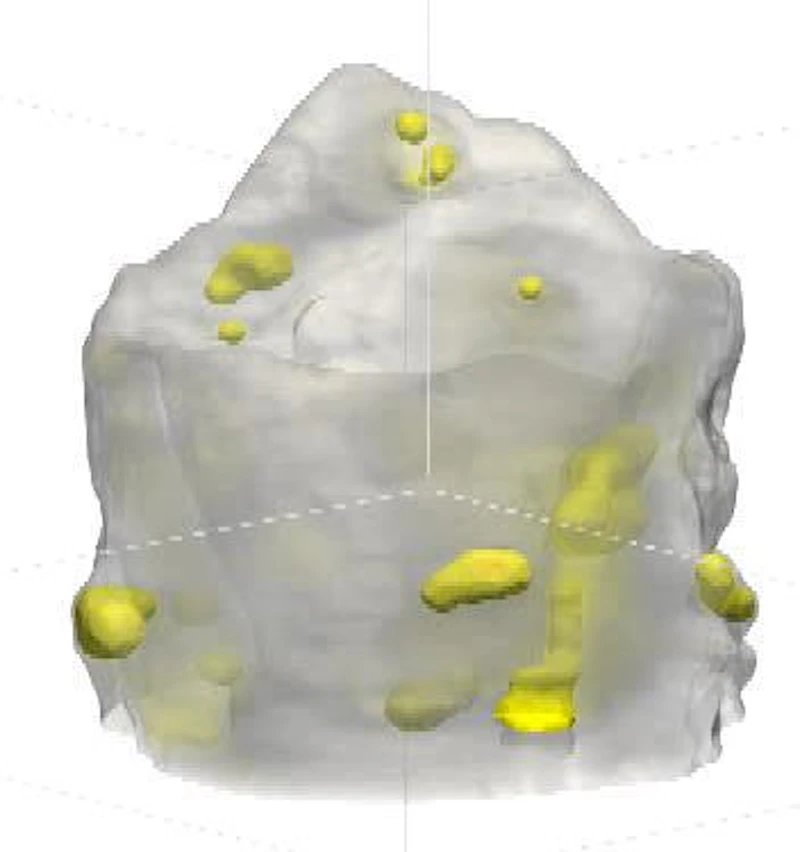

Tomography
-

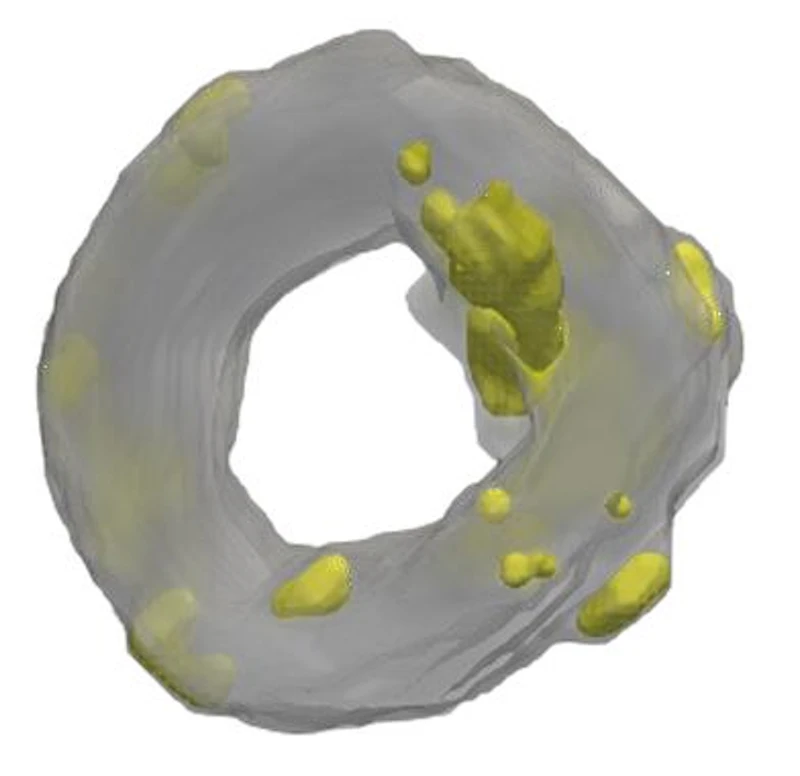

Tomography
-

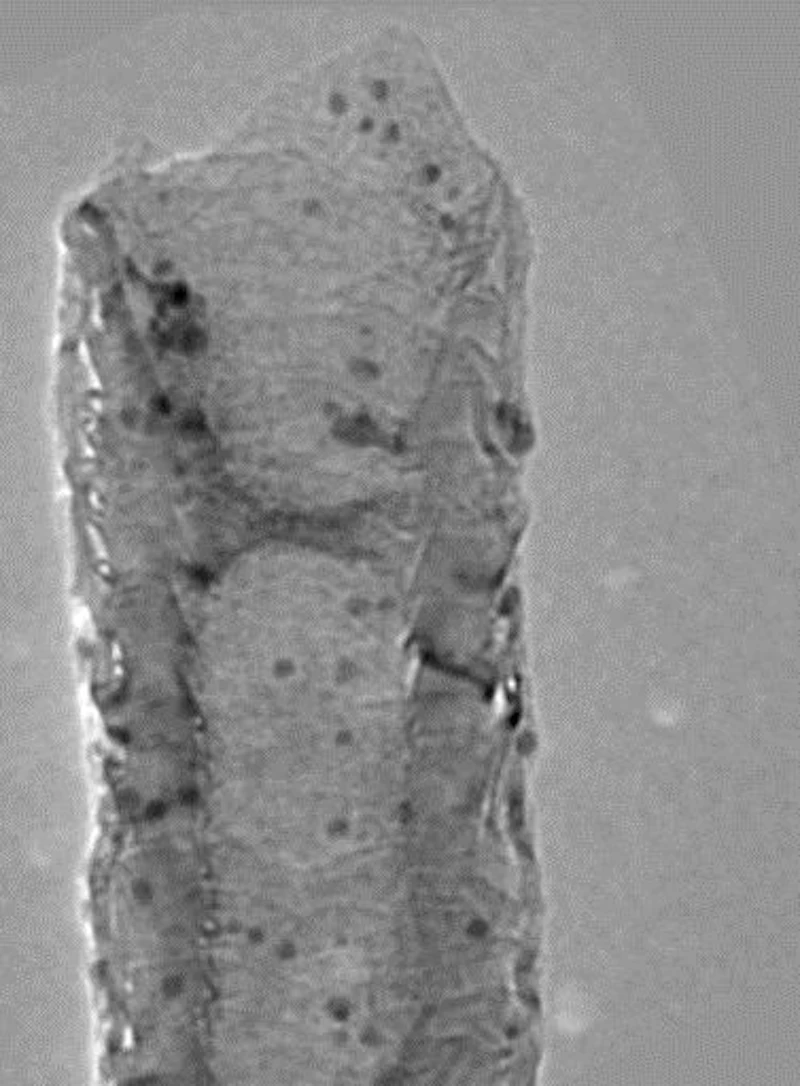

Tomography
-

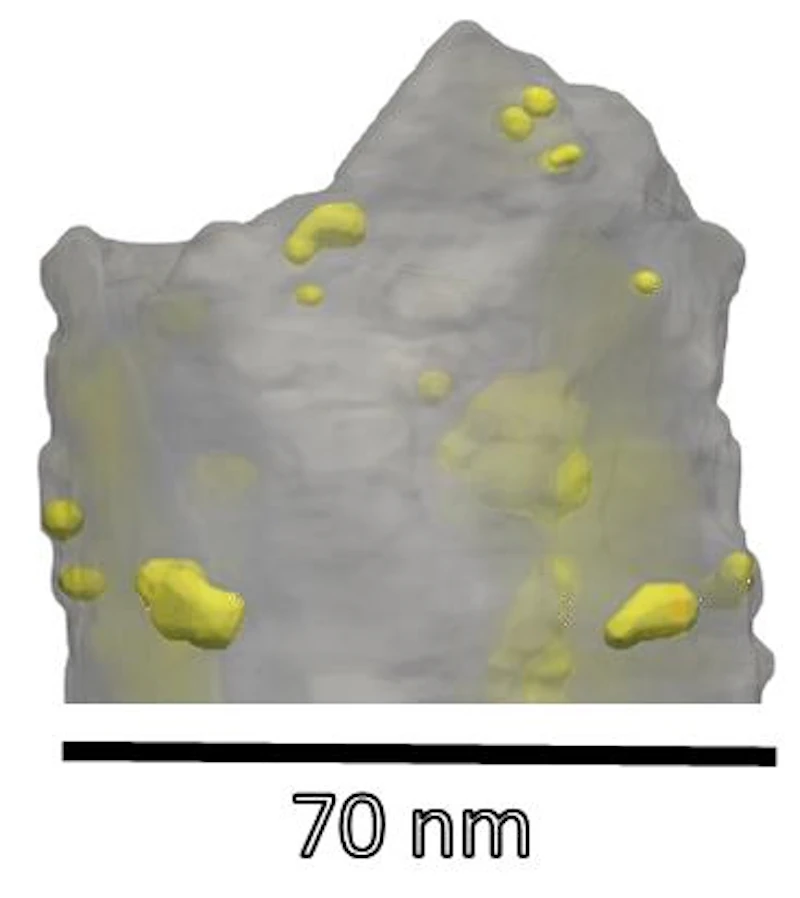

Tomography
